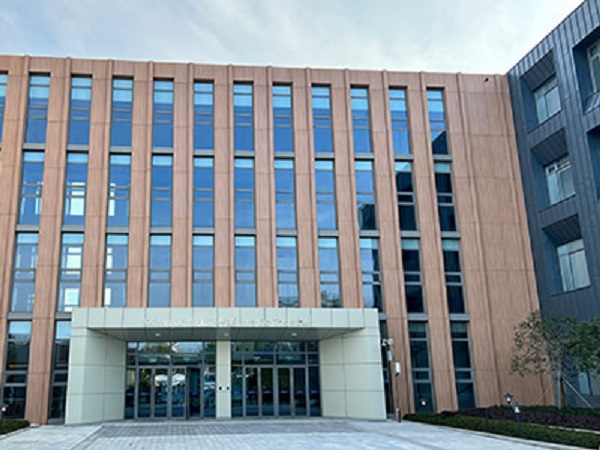

HPL facade cladding installation transforms building exteriors through a systematic mounting process that delivers weather-resistant, aesthetically superior building envelopes. This professional construction technique secures high-pressure laminate panels to building structures using engineered subframe systems and precision fastening methods.

Professional installation delivers measurable benefits:

• - Proper mounting techniques ensure 30-50 year service life with minimal maintenance requirements.

• - Ventilated cavity installation prevents moisture accumulation and extends substrate longevity.

• - Standardized procedures enable consistent quality across diverse building types and climate zones.

• - Correct fastening methods withstand wind loads up to 3.0 kPa while accommodating thermal movement.

• - Professional execution reduces callbacks, warranty claims, and long-term maintenance costs significantly.

Every installation step directly impacts the facade's structural performance, weather protection, and visual appearance throughout its service life.

Key Takeaways

• - HPL facade cladding installation requires systematic planning from substrate assessment through final inspection and quality verification.

• - The substructure framework must be precisely aligned, adequately spaced, and structurally verified before panel mounting begins.

• - Proper expansion gap maintenance (3-5mm between panels) prevents buckling from thermal movement across seasonal temperature variations.

• - Installation quality directly determines weather resistance, with proper detailing preventing 95% of common moisture infiltration issues.

• - Professional installers follow manufacturer specifications for fastener types, spacing, torque values, and edge distances.

• - Ventilated cavity depth of 40-50mm enables moisture drainage and thermal performance essential for long-term durability.

• - Quality control inspections at substrate, framework, and panel stages identify issues before they multiply across the facade.

• - Certified installation from experienced contractors ensures code compliance, warranty validity, and optimal long-term performance.

Understanding HPL Facade Cladding

Material Composition

HPL facade cladding consists of multiple kraft paper layers impregnated with thermosetting resins and bonded under high pressure (over 1,430 psi) at elevated temperatures (approximately 300°F). This manufacturing process creates dense, non-porous panels with exceptional weather resistance. The decorative surface layer provides color, texture, and UV protection, while the core layers deliver structural strength. Modern HPL panels designed for exterior use incorporate enhanced resin formulations that resist moisture penetration, thermal stress, and ultraviolet degradation. Understanding material properties helps installers handle panels correctly and select appropriate mounting methods.

Note: HPL panel density typically ranges from 1.35 to 1.45 g/cm³, significantly higher than standard laminates. This density contributes to dimensional stability essential for facade applications.

Panel Systems

HPL facade installations employ various panel configurations based on architectural requirements. Flat panels create clean, contemporary appearances suitable for commercial buildings. Profiled panels add dimensional interest through surface texture or relief patterns. Custom-formed panels accommodate curved facades or complex geometries. Each system type requires specific installation considerations regarding support spacing, fastener placement, and joint treatment. Panel edges may be factory-finished with protective coatings or require field-applied edge sealers depending on mounting method and exposure conditions.

Installation Components

A complete HPL facade system comprises multiple integrated components working together. The primary substructure consists of aluminum or steel rails creating the mounting framework. Brackets connect rails to the building substrate, with shims accommodating surface irregularities. Fasteners include stainless steel rivets, screws, or specialized clips depending on the mounting system. Weather barriers behind the substructure prevent moisture intrusion into wall assemblies. Flashings, sealants, and trim pieces complete transitions, corners, and penetrations. Each component must meet specified performance standards to ensure system integrity.

Tip: Component compatibility is critical. Mixing materials from different manufacturers may void warranties and compromise long-term performance. Verify all components are approved for use together.

Why Professional Installation Matters

Structural Integrity

Professional installation ensures HPL cladding withstands design loads throughout its service life. Experienced installers calculate fastener spacing based on wind exposure, panel size, and substrate capacity. They verify that support structures remain within deflection limits under maximum loads. Proper load distribution prevents stress concentrations that cause fastener failure or panel damage. Building codes mandate specific attachment strengths—professional installers document compliance through inspection reports and load testing. Substandard installation creates safety hazards, with panels potentially detaching during windstorms. The structural engineering behind facade systems requires trained professionals who understand force distribution, thermal movement, and material behavior.

Weather Barrier Performance

Correctly installed HPL facades create effective weather barriers protecting building envelopes from moisture damage. Professional installers understand how water moves across facade surfaces and design drainage paths preventing infiltration. They sequence installation layers properly, ensuring weather barriers, flashings, and sealants form continuous protection. The ventilated cavity behind panels allows moisture that penetrates joints to drain and evaporate naturally. Poor installation creates water traps where moisture accumulates, leading to mold growth, insulation degradation, and structural damage. Research shows that 80% of facade failures result from improper installation rather than material defects. Professional contractors implement proven details at vulnerable areas including corners, penetrations, and base conditions where water infiltration risks increase.

• - Proper flashing integration at horizontal and vertical transitions

• - Continuous air and moisture barrier behind substructure

• - Adequate weep holes and drainage paths at cavity base

• - Compatible sealant selection for joint sealing

Long-Term Economics

Professional installation delivers superior return on investment through reduced maintenance costs and extended service life. Properly installed facades require minimal intervention—typically limited to periodic cleaning and occasional sealant replacement. Conversely, installation defects generate ongoing repair expenses, premature panel replacement, and progressive system deterioration. The cost difference between professional and substandard installation appears minimal initially but compounds dramatically over decades. Building owners avoiding installation shortcuts realize 30-50 year service lives with maintenance costs under 2% of initial investment. Professional contractors provide warranties backing their work, protecting owners from expensive remediation. This quality assurance justifies premium pricing for experienced installation teams.

Note: Manufacturer warranties typically require certified installer participation. Warranty coverage may be void if installation deviates from published specifications or if unqualified contractors perform the work.

Installation Process

Phase 1: Pre-Installation

Successful installation begins with comprehensive site assessment and planning. The substrate receives thorough evaluation for structural capacity, surface condition, and dimensional accuracy. Concrete or masonry walls must be cured, dry, and free from loose material. Steel framing requires proper corrosion protection. Wood substrates need adequate weather barriers and appropriate fastener bases. Installers verify building dimensions against design documents, identifying discrepancies requiring resolution.

Material staging and protection prevent damage before installation. Panels should be stored flat, protected from moisture and direct sunlight. Acclimation to site conditions for 24-48 hours minimizes dimensional changes after mounting. The installation team reviews shop drawings, verifying all details and custom components are understood. Safety equipment, fall protection, and access equipment receive inspection before work commences.

Phase 2: Substructure Installation

The mounting framework establishes the foundation for panel installation quality. Installers begin by establishing reference lines using laser levels or transit equipment. These references ensure the framework remains plumb and level across the entire facade. Brackets attach to the substrate at specified intervals, with positioning verified against structural calculations. Rail installation follows bracket placement, with each rail checked for alignment before final fastening.

Framework installation requires continuous quality verification:

• - Rail position: maximum 3mm deviation over 3 meters

• - Plumb alignment: within 3mm per floor height

• - Bracket spacing: per structural calculations (typically 800-1200mm)

• - Cavity depth: 40-50mm minimum maintained consistently

• - Fastener engagement: verified torque specifications met

Shims compensate for substrate irregularities, maintaining framework alignment. Installers document framework dimensions and positions, creating as-built records for reference.

Tip: Install a mock-up section before full-scale work begins. This allows the team to verify procedures, identify issues, and establish quality standards.

Phase 3: Panel Preparation

Accurate panel cutting and preparation ensure proper fit and professional appearance. Each panel location receives careful measurement, accounting for expansion gaps and fastener positions. Cutting operations use carbide-tipped circular saw blades operated at moderate speeds (3,000-4,000 RPM). Feed rates should be steady, preventing overheating that causes edge discoloration or delamination.

Drilling for through-fasteners requires precision to prevent cracking. Installers use sharp drill bits specifically designed for laminate materials. Drill speed should be moderate (1,500-2,000 RPM) with light pressure. Hole diameter should exceed fastener diameter by 1-2mm, allowing thermal expansion. All holes are positioned according to design drawings, maintaining specified edge distances.

Edge treatment depends on the mounting system and exposure conditions. Some installations require edge sealing with compatible products preventing moisture intrusion. Factory-finished edges typically need no field treatment. Cut edges may need light sanding to remove burrs before sealing or installation.

Phase 4: Panel Mounting

Panel installation follows systematic sequences maintaining alignment and consistent joint spacing. Starting points are established at corners or prominent features. Spacers maintain proper expansion gaps (3-5mm) between adjacent panels. Each panel receives careful positioning before fastening begins.

For visible fixing systems, fastener installation follows precise patterns. Template guides ensure consistent positioning and appearance. Each fastener penetrates the panel, passes through the ventilated cavity, and engages the support rail. Torque specifications prevent over-tightening that creates stress concentrations or panel dimpling. Washers distribute loads and may include color-matched caps for aesthetic integration.

Concealed clip systems require different procedures. Clips attach to support rails first, positioned according to panel edge configurations. Panels slide into position, engaging clips along edges. This method demands extremely precise panel sizing and careful handling during installation.

Phase 5: Joint Treatment and Finishing

Joint detailing completes weather protection and visual continuity. Open joint systems are most common, featuring gaps allowing drainage and ventilation. Joint widths remain consistent, maintained by spacers during installation. Some designs incorporate backer rods or gaskets behind joints for enhanced weather protection.

Sealant application requires surface preparation and proper technique. Joint surfaces must be clean, dry, and free from contamination. Masking tape protects adjacent surfaces from excess sealant. Application tools include professional-grade caulking guns providing consistent flow. Tooling creates concave profiles that shed water effectively.

Trim pieces, edge profiles, and corner treatments receive careful installation. These components integrate with the panel system, providing finished transitions. All trim fastening follows specifications to prevent telegraphing through visible surfaces.

Installation Materials and Hardware

Substructure Components

Professional installations use engineered aluminum extrusion systems designed specifically for facade applications. These profiles feature precise dimensions, adequate strength, and corrosion resistance. Standard profiles include vertical rails (50-60mm depth), horizontal rails, and specialized shapes for corners and transitions. Wall thickness typically ranges from 2.0-3.0mm depending on span and load requirements.

Brackets connecting rails to substrates must support design loads while accommodating thermal movement. Adjustable brackets allow shimming that compensates for substrate irregularities. Some systems incorporate thermal breaks reducing heat transfer through mounting points. Each bracket type has specific load ratings verified through testing.

Material specifications for substructure:

• - Aluminum alloy: 6063-T5 or 6061-T6 (typical)

• - Surface treatment: Anodized or powder-coated

• - Rail deflection limit: L/360 under design loads

• - Bracket capacity: Verified pull-out and shear strength

• - Corrosion resistance: Suitable for exposure environment

Fastening Systems

Fastener selection significantly impacts installation quality and long-term performance. Stainless steel fasteners (304 or 316 grade) provide corrosion resistance in most environments. Coastal or industrial settings may require 316 grade or specialized coatings. Fastener length must accommodate panel thickness, ventilated cavity depth, and adequate rail engagement (minimum 15mm thread engagement for screws).

Common fastener types include:

• - Rivets: Permanent attachment, excellent wind resistance, available in various head styles and colors

• - Self-tapping screws: Adjustable, removable, require torque control, available with colored caps

• - Blind fasteners: Access from one side only, useful for specific mounting conditions

• - Clip systems: Concealed attachment, specialized designs for edge engagement

All fasteners must include appropriate washers or load-distributing elements. Washer diameter should be 2-3 times fastener diameter, preventing pull-through under load.

Note: Never mix incompatible metals in direct contact. Aluminum rails with stainless steel fasteners require isolation to prevent galvanic corrosion. Neoprene or plastic washers provide effective separation.

Sealants and Weatherproofing

High-performance sealants accommodate joint movement while maintaining weather protection. Silicone sealants offer excellent UV resistance and movement capability (±25% joint width). Polyurethane sealants provide superior adhesion but have lower movement capability (±12.5% typical). Hybrid polymer sealants balance properties between silicone and polyurethane.

Sealant selection considers:

• - Joint movement: Calculate expected thermal expansion/contraction

• - Adhesion: Verify compatibility with HPL, aluminum, and other materials

• - Exposure: Select products rated for continuous exterior exposure

• - Application: Ensure temperature and humidity meet product requirements

Weather barriers behind the substructure prevent moisture infiltration into wall assemblies. These membranes must be vapor-permeable, allowing cavity moisture to escape while blocking water intrusion. Proper lapping, sealing around penetrations, and integration with window flashings ensure barrier continuity.

Standards and Building Codes

Relevant Standards

HPL facade installation must comply with multiple standards ensuring safety and performance. Material standards define panel properties, testing methods, and performance criteria. Installation standards specify mounting procedures, fastener requirements, and quality control methods. Building codes establish minimum safety thresholds for wind resistance, fire performance, and structural adequacy.

Key applicable standards:

• - EN 438: High-pressure decorative laminates specifications and testing

• - ASTM D5643: Standard specification for high-pressure decorative laminate panels

• - EN 13501: Fire classification of construction products and building elements

• - AAMA 509: Voluntary specification for composite wall panel systems

• - Local building codes: Wind load requirements, fire ratings, accessibility

Professional installers maintain current knowledge of applicable codes and standards, ensuring installations meet all regulatory requirements.

Wind Load Requirements

Wind pressure calculations determine fastener spacing and substructure design. These calculations account for building height, location, exposure category, and importance factor. Wind loads vary significantly across facade surfaces, with increased pressures at corners, edges, and upper floors. Engineers calculate design pressures for specific projects, providing specifications that installers must follow precisely.

Typical design wind pressures range from 1.5 kPa (low-rise, protected locations) to 4.0+ kPa (high-rise, exposed coastal areas). Fastener spacing decreases as design pressure increases. Edge zones require enhanced fastening—often 50-75% of the spacing used in field areas.

Tip: Always follow engineered specifications for fastener spacing and rail sizing. "Rule of thumb" approaches may not provide adequate safety factors for specific building conditions.

Fire Safety Requirements

Building codes classify facade systems by fire performance, with requirements varying by building height, occupancy type, and proximity to property lines. HPL panels achieve various fire ratings depending on resin formulations and thickness. Standard classifications include Class B (flame spread 26-75) or Class C (flame spread 76-200) in North American systems, or Euroclass B-s1,d0 through E in European classifications.

Fire-rated installations may require:

• - Non-combustible substructure components

• - Fire-rated insulation behind panels

• - Horizontal and vertical fire stops at floor lines

• - Increased clearance from openings

• - Special details at demising walls

Project specifications define required fire ratings. Installers must verify all materials, components, and details comply with these requirements.

Quality Control Procedures

Substrate Verification

Quality installation begins with proper substrate conditions. Inspectors verify structural adequacy through document review and field observation. Load capacity must meet or exceed design requirements, accounting for facade weight and wind loads. Surface flatness receives measurement using straight edges or laser scanning. Deviations exceeding 6mm over 3 meters may require correction before installation proceeds.

Moisture content in substrates affects installation timing. Concrete should reach appropriate cure levels with moisture content below 12%. Wood substrates require moisture content suitable for the climate zone (typically 12-15%). Installers document substrate conditions through photographs and inspection reports, establishing baseline records.

Framework Inspection

Substructure quality determines panel installation success. Inspectors verify rail alignment using precision instruments, checking plumb and level conditions at multiple points. Rails must remain within 3mm tolerance over 3-meter measurements. Bracket spacing follows engineering specifications, with each connection point verified for proper fastening.

Installers test random bracket installations for pull-out resistance, ensuring adequate substrate engagement. This testing provides confidence in mounting system integrity before panels are installed. Any deficiencies receive immediate correction, preventing multiplication across the facade.

Installation Monitoring

Ongoing inspection during panel mounting identifies issues before they affect large areas. Quality control personnel check:

• - Panel alignment: Consistent reveals and parallel joints

• - Fastener installation: Proper spacing, torque, and positioning

• - Expansion gaps: Consistent 3-5mm spacing maintained

• - Surface protection: Panels remain undamaged during handling

• - Weather protection: Completed sections sealed before exposure

Installers maintain daily logs documenting progress, weather conditions, and any deviations from planned procedures. These records support warranty claims and provide references for future maintenance.

Note: Statistical sampling provides efficient quality verification. Inspect 10-15% of installed area in detail, with random selection ensuring representative coverage across the facade.

Final Acceptance

Completed installations undergo comprehensive final inspection verifying all elements meet project requirements. Inspectors examine the entire facade systematically, checking panel attachment, joint consistency, trim details, and weather sealing. They verify cleaning is complete and protective films are removed.

Functional testing validates performance:

• - Water testing: Spray testing or chamber testing per ASTM E1105 verifies weather resistance

• - Fastener verification: Torque checking confirms proper tightening

• - Movement joints: Visual verification of proper sizing and installation

• - Drainage: Water flow testing confirms cavity drainage functions

Documentation packages include:

• - As-built drawings showing panel layout and details

• - Material certifications for panels, fasteners, and sealants

• - Installation photographs documenting key stages

• - Test reports from quality control activities

• - Maintenance manual with recommended care procedures

This documentation supports warranty administration and guides future maintenance activities.

Installation Applications

Commercial Buildings

Office buildings, retail centers, and institutional facilities commonly employ HPL facade cladding for its versatility and performance. Installation typically occurs during new construction after structural completion and weather barrier installation. The lightweight panel systems integrate smoothly with contemporary construction schedules, allowing interior work to proceed concurrently.

Commercial project considerations include:

• - Accelerated schedules requiring efficient installation methods

• - Multiple building orientations with varying wind exposure

• - Complex ground-floor detailing with storefronts and entries

• - Coordination with glazing systems and other facade elements

• - Accessibility requirements for maintenance equipment

Professional contractors sequence work strategically, maximizing productivity while maintaining quality. Prefabrication strategies reduce on-site labor, with substructure components arriving pre-cut and ready for installation.

Renovation Projects

Existing buildings gain renewed life through HPL facade installations that modernize appearance and improve energy performance. Renovation installations present unique challenges requiring careful planning and execution. Structural assessments verify that existing buildings can support additional facade weight and wind loads. Some projects require strengthening before new cladding installation.

The renovation process typically includes:

1. - Existing facade assessment and documentation

2. - Selective demolition of deteriorated cladding

3. - Substrate repair and weatherproofing upgrades

4. - Insulation enhancement improving thermal performance

5. - New substructure and panel installation

6. - Integration with retained building elements

Occupied building renovations require phased installation maintaining weather protection and minimizing disruption. Installers work section by section, completing weather sealing before moving to adjacent areas. This approach allows building operation to continue throughout construction.

Tip: Renovation projects often reveal unexpected conditions. Build contingency time and budget into schedules, allowing for proper resolution of unforeseen issues without compromising installation quality.

Special Conditions

Certain installations demand modified techniques accommodating unusual requirements. High-rise buildings experience increased wind loads requiring enhanced fastening and structural analysis. Curved facades need flexible substructure systems and custom-fabricated panels following building geometry. Coastal environments necessitate superior corrosion protection through upgraded material specifications.

Seismic regions require installations accommodating building movement during earthquakes. Mounting systems incorporate flexible connections allowing relative movement between structure and facade. These details prevent panel damage during seismic events while maintaining weather protection.

Each specialized application requires additional engineering analysis and experienced installation teams familiar with the specific challenges. Proper execution ensures facades perform reliably despite demanding service conditions.

Maintenance and Inspection

Routine Cleaning

HPL facades require periodic cleaning maintaining appearance and preventing long-term staining. Cleaning frequency depends on environmental exposure—typically annual cleaning in rural areas, quarterly in urban or industrial zones, and monthly in coastal areas with salt spray exposure.

Proper cleaning procedures:

1. - Rinse surfaces with clean water removing loose dirt

2. - Apply mild detergent solution (pH 7-8) using soft brushes or cloths

3. - Agitate gently, working from bottom to top preventing streaking

4. - Rinse thoroughly with clean water, ensuring no detergent residue

5. - Allow surfaces to air dry or wipe with clean microfiber cloths

Avoid high-pressure washing (above 500 psi), abrasive cleaners, or strong solvents that may damage panel surfaces or force water behind the facade. Specialized cleaners are available for specific contaminants including graffiti, rust stains, or biological growth.

Scheduled Inspections

Building owners should establish regular inspection programs identifying developing issues before they cause significant damage. Annual visual inspections from ground level identify obvious problems including damaged panels, missing fastener caps, or sealant deterioration. Detailed hands-on inspections every 3-5 years include:

• - Panel condition: Checking for cracks, delamination, or fading

• - Fastener integrity: Verifying tightness and corrosion resistance

• - Joint sealants: Assessing adhesion and flexibility

• - Drainage system: Confirming weep holes remain clear

• - Substructure: Examining visible components for corrosion

Inspectors document findings with photographs and written reports. They recommend repair priorities based on performance impacts and safety considerations.

Repair Procedures

Minor damage receives prompt attention preventing progression. Scratches or scuffs may be addressed using manufacturer-approved touch-up materials. Sealant deterioration requires removal of failed material, surface preparation, and reapplication following original specifications.

Damaged panels require replacement following proper procedures:

1. - Document damage with photographs

2. - Remove fasteners or release clips securing damaged panel

3. - Extract panel carefully to avoid damaging adjacent panels

4. - Inspect substructure for any damage requiring repair

5. - Install replacement panel matching original specifications

6. - Verify proper fastening and gap maintenance

7. - Complete trim and sealing work

Note: Maintaining spare panels matching original color and finish facilitates repairs while ensuring visual consistency. UV exposure causes slight color shifts over time—repairs using new panels may show subtle color differences.

Troubleshooting Common Issues

Panel Buckling

Panel buckling typically results from inadequate expansion gaps or over-tightened fasteners. The problem appears as visible waviness or distortion in panel surfaces. Prevention requires maintaining proper 3-5mm gaps between panels and following specified torque values for fasteners.

Correction involves:

• - Removing affected panels and verifying gap dimensions

• - Checking fastener tightness using torque wrenches

• - Reinstalling with proper gaps and torque

• - Monitoring panels through seasonal temperature cycles

Water Infiltration

Water entering behind panels indicates failed weather barriers, improper flashings, or sealant deterioration. Investigation identifies entry points through water testing or infrared thermography. Common problem areas include window perimeters, corner details, and base-of-wall transitions.

Remediation addresses root causes:

• - Flashing repairs or replacement ensuring proper lapping

• - Sealant removal and reapplication using compatible products

• - Weep hole verification ensuring drainage paths remain clear

• - Weather barrier repairs maintaining continuity

Panel Discoloration

Color changes may result from UV exposure (normal aging), contamination, or cleaning product incompatibility. Uniform fading across sun-exposed areas represents normal weathering. Localized discoloration suggests contamination or inappropriate cleaning methods.

Addressing discoloration:

• - Test cleaning methods on inconspicuous areas first

• - Use manufacturer-approved cleaners for specific stains

• - Consider panel replacement for severe or irreversible discoloration

• - Review maintenance procedures preventing future issues

Selecting Installation Contractors

Essential Qualifications

Quality installations require contractors possessing specific expertise and credentials. Verify potential contractors have:

• - Manufacturer certifications: Completion of training programs for specified products

• - Insurance coverage: General liability ($2M minimum) and workers compensation

• - Safety programs: Documented procedures and strong incident-free performance records

• - Relevant experience: Completed projects of similar scope, complexity, and building type

• - Technical capability: Staff capable of reading construction documents and solving field challenges

Request references from recent similar projects. Contact references directly, asking about installation quality, schedule performance, and problem resolution.

Proposal Evaluation

Contractor proposals should provide detailed scope descriptions, schedules, and pricing breakdowns. Evaluate proposals based on:

The lowest price rarely represents the best value. Focus on qualifications, experience, and quality commitment rather than price alone.

Project Management

Successful contractors provide clear communication and professional project management throughout installation. They conduct pre-installation meetings establishing expectations and procedures. Regular progress reports keep stakeholders informed of status, issues, and schedule adherence. Prompt notification of any problems allows collaborative problem-solving before impacts multiply.

Reputable contractors maintain detailed records documenting installation activities, quality checks, and material certifications. This documentation supports warranty administration and provides valuable references for future maintenance planning.

For projects requiring reliable HPL facade materials, SHENRGONG serves as an established China HPL facade supplier providing quality panels with comprehensive technical support throughout the installation process. Their commitment to manufacturing excellence and customer service helps contractors achieve successful project outcomes with materials meeting international performance standards.

Conclusion

HPL facade cladding installation combines systematic planning, skilled craftsmanship, and rigorous quality control delivering building exteriors that perform reliably for decades. Success depends on proper substrate preparation, precise substructure installation, careful panel mounting, and thorough inspection procedures. Professional installation teams following manufacturer guidelines create facades withstanding environmental challenges while maintaining visual excellence with minimal maintenance intervention.

The integration of quality materials, trained installers, proven techniques, and comprehensive oversight produces building envelopes meeting contemporary architectural demands for aesthetics, durability, and energy performance. Whether constructing new facilities or renovating existing structures, professional HPL facade installation provides versatile solutions achieving design intent while protecting building investments.

Frequently Asked Questions

What installation duration should building owners expect?

Installation timelines depend on project size, complexity, building height, and crew experience. Experienced teams typically install 100-150 square meters daily under favorable conditions. A 1,000 square meter facade requires approximately 2-3 weeks including mobilization, substructure installation, panel mounting, and finishing details. Complex projects with extensive custom detailing need additional time. Weather delays and coordination with other trades also affect schedules.

How do extreme temperatures affect installation?

Temperature impacts both material behavior and installation quality. Avoid installation when temperatures fall below 5°C, as sealants may not cure properly and materials become brittle. Extremely hot conditions (above 35°C) accelerate sealant curing, reducing working time. Thermal expansion calculations assume moderate installation temperatures—panels installed in extreme heat or cold may experience excessive movement during seasonal changes. Professional contractors monitor conditions and adjust schedules accordingly.

Can HPL facades be installed over existing cladding?

Over-cladding existing facades is possible if the existing structure provides adequate support for additional loads. Structural engineers must verify capacity before proceeding. The existing facade condition affects feasibility—severely deteriorated substrates may require removal. Over-cladding benefits include reduced demolition costs, faster installation, and continued building operation during construction. However, proper ventilation and weather barrier integration require careful detailing to prevent moisture problems.

What warranty coverage should owners expect?

Manufacturer warranties typically cover material defects for 10-15 years, addressing delamination, excessive fading, or manufacturing flaws. Installation warranties from contractors cover workmanship issues including improper fastening, misalignment, or water infiltration from installation errors. Workmanship warranties typically extend 2-5 years. Both warranties often require professional maintenance and documentation of proper care. Review warranty terms carefully, understanding coverage limitations and owner responsibilities.

How does installation differ between new construction and renovation?

New construction installations proceed on clean, consistent substrates with predictable conditions. Renovations face existing building irregularities, requiring more extensive substrate preparation and adaptation to found conditions. Access may be more restricted with renovations, particularly in occupied buildings. Phasing requirements maintain weather protection while work progresses section by section. Renovation budgets should include contingencies for unforeseen conditions discovered during demolition. Despite these differences, both application types follow the same fundamental installation principles and quality standards.

What qualifies as proper fastener torque?

Proper torque balances secure attachment against panel stress from over-tightening. Specific values depend on fastener type and size—typically ranging from 3-6 N⋅m for standard facade fasteners. Under-tightening allows fastener loosening from vibration or thermal cycling. Over-tightening creates stress concentrations causing panel cracking or dimpling. Professional installers use calibrated torque-limiting tools ensuring consistent, appropriate fastening. Manufacturer specifications provide exact values for specific applications.

Why is the ventilated cavity important?

The air space behind HPL panels serves multiple critical functions. Ventilation allows moisture that penetrates panel joints to drain and evaporate, preventing accumulation that causes damage. Air circulation reduces heat buildup on panel back surfaces, minimizing thermal stress. The cavity accommodates building movement without transferring stress to panels. Minimum 40mm depth ensures adequate airflow and drainage. Blocking or reducing cavity depth compromises these functions, potentially causing premature system failure.

Tip: Always request comprehensive installation documentation including photographs, material certifications, and test reports. This documentation protects warranty coverage and supports future maintenance planning.
